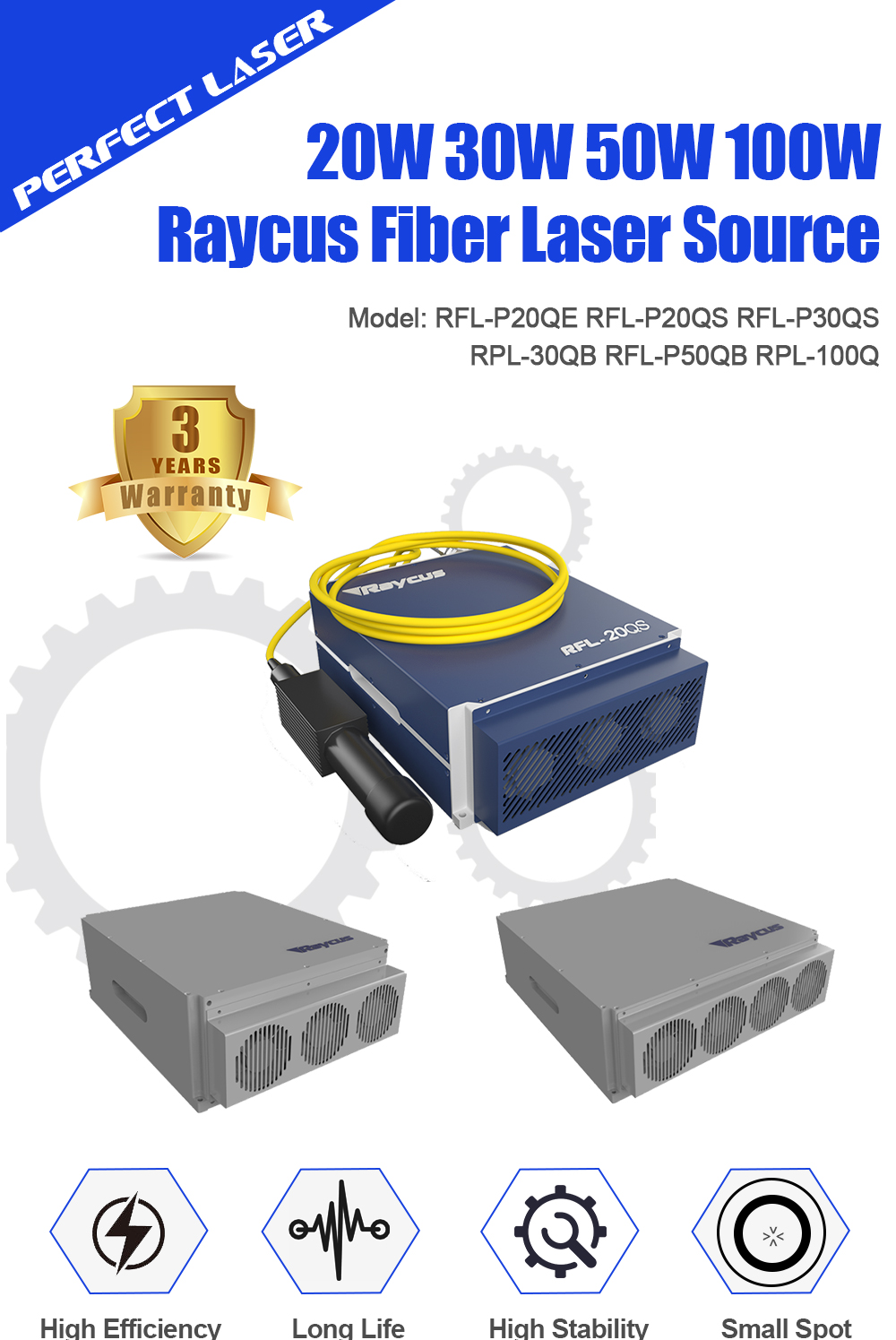

Perfect Laser - 20W 30W 50W 100W Raycus Fiber Laser Source For Metal Cutting Marking Cleaning
(Model: RFL-P20QE/RFL-P20QS)
>>>>> Machine Introduction
Perfect laser 20-100W pulsed fiber laser source is an ideal high power laser source with high speed and high efficiency.
The fiber laser source is specially designed for industrial laser making system and other applications.
Compared with traditional lasers, pulsed laser has some special advantages in increasing the conversion efficiency of the pump light 10 times higher.Its low power consumption and automotive design make it appropriate for operating both in and outside . Besides, the fiber laser source is exquisite and convenient for its independence in placement, free time in using and facility in connecting to equipment directly.
The device can emit 1060~ 1085nm wavelength pulsed light under the control of industrial laser' s standard interface driven by 24VDC power source.
>>>>> Product Features
1. High stability laser output
2. High single pulse energy
3. High marking efficiency
4. Short pulse settling time
5. High reliability
6. Maintenance-free operation
7. Long service life
>>>>>Application
It is suitable for marking, texturing,material processing, deep carving, micro processing, precision welding, cleaning, silicon processing, resistance adjustment, scribing,ITO film etching, foil
cutting and punching.
>>>>>Technical Data
Model | RFL-P20QE | RFL-P20QS | RFL-P30QS | RPL-30QB | RFL-50QB | RPL-100QB |
| Rated Output Power(w) | 20 | 20 | 30 | 30 | 50 | 100 |
| Center Wavelength(Nm) | 1064 |
| Repetition Frequency Range(Kh7) | 30-60 | 30-60 | 40-60 | 30-60 | 50-100 | 20-200 |
| Power Stability(%) | <3% | <5% |
| Output Spot Diameter | 7±1 | 6.5±1 |
| M² | <1.5 | <1.6 | 1.6 |
| Pulse Width(Ns) | 120-150 | 130-160 | 120-150 | 50-110 |
| Max Single Pulse Energy(Mj) | 0.67 | 0.75 | 1 |
| Output Fiber Length(m) | 3m Can Be Customized |
| Input Power(Vdc) | 24 |
| Power Adjustment Range(%) | 10-100 | 0-100 |
| W*H*D (Mm) | 260*340* 120 | 215*290*95 | 260*340*120 | 360*390* 123 |
| Cooling Method | Air Cooling |
| Operating Temperature(℃) | 0-40 |
>>>>> Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
>>>>>Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
More information,pls visit :https://www.perfectlaser.net/fiber-laser-source/
