1000w 1500w 2000w Easy to Operate Raycus Welding Cutting and Cleaning High Precision Handheld Fiber Laser Welding Machine Laser Welder
(Model:PE-W1000G)
★ Product Introduction of laser gold soldering machine:
This laser welding machine is equipped with a continuous fiber laser source, offering rapid processing speeds, high efficiency, and reliable performance. Its integrated design features a sleek and aesthetically pleasing structure, making it user-friendly and straightforward to learn and operate. Additionally, the machine boasts a long service life, ensuring durability and value over time.
★ Features of laser gold soldering machine :
-

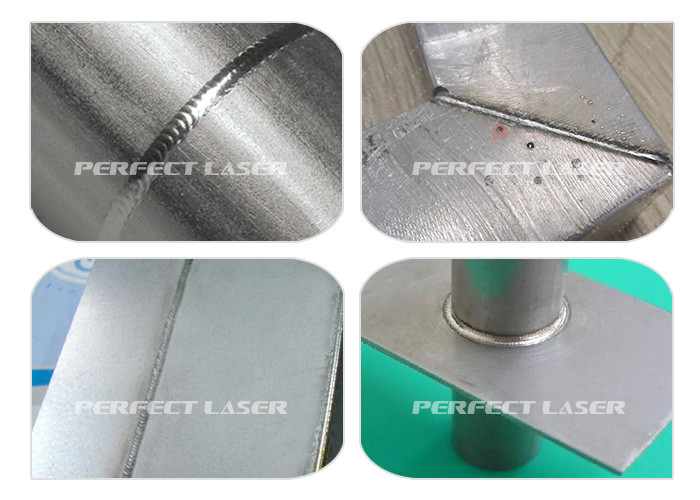

The welded surface exhibits a smooth finish, free from any wrinkles.
-
The machine is intuitive to learn and effortless to operate.
-
It comes equipped with a diverse range of laser welding heads, enabling seamless welding at various angles and across different areas.
-
With its water-cooled design, the machine remains cool during operation.
-
Directional point-to-point welding is significantly faster compared to conventional welding methods.
★ Application of laser gold soldering machine :
1.This laser welding machine is well-suited for welding various types of 3mm thin metal materials.
It finds extensive application in the advertising sector, including the production of LED letters, advertising signage, and other related industries.
★ Technical Parameters of laser gold soldering machine :
| 1 | Product Name | Portable Laser Welding Machine |
| 2 | Model | PE-W1000G |
| 3 | Input Voltage | 220V / 50HZ / 20A |
| 4 | Maximum Input Power | 3.5 KW |
| 5 | Fiber Laser Source | 1000 W |
| 6 | Welding Thickness | 3mm |
| 7 | Welding HeadConfiguration | QBH + double water cooling inside |
| 8 | Laser Mode | Continuous / Modulation |
| 9 | Laser Wavelength | 1070nm |
| 10 | Beam Divergence Angle | ≤1.2mrad/m |
| 11 | Welding Interface | QBH |
| 12 | Fiber Cable Length | 10m |
| 13 | Laser Spot Diameter | 0.2-2mm,adjustable |
| 14 | Targeting | Red light |
| 15 | Cooling System | 1000w water cooler inside,double circulation system, Heat-exchange titanium tube,over-heat alarm, flow protection, water level protection |
| 16 | Machine Size | 1030x600x1200mm |
| 17 | Whole Weight | 260 KGS |
| Laser Optic Specification |
| 1 | Rated power (CW) | 1000(-0,+10%)W |
| 2 | Operation Mode | Continuous / Modulation |
| 3 | Polarization | random |
| 4 | Emission Wavelength | 1070nm |
| 5 | RF Width | < 6.0nm |
| 6 | Output Power Adjustable (CW) | 10 - 100% |
| Laser pilot | Emission Wavelength | 630 - 680nm |
| | Maximum Output Power | 1.0mW |
| QBH Optic Output Interface Specification |
| 1 | NA (nominal) | 0.10 |
| 2 | M2 | 1.20 |
| 3 | Mode Field Diameter | 21.0Micron |
| 4 | Core/Cladding Diameter | 20/400Micron |
| 5 | Cable Length | 10m |
| 6 | Maintainable OutputPower (CW) | 10 - 100% |
| Laser pilot | Emission Wavelength | 630 - 680nm |
| | Maximum Output Power | 1.0mW |
| Fitting Parts (Free of Charge) |
| Series | Name | Number |
| 1 | Protect Mirror | 10 pieces |
| 2 | Filter Core | 1 piece |
| 3 | Welding Copper Nozzle | 2 pieces |
★ Machine parts of laser gold soldering machine:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
